The DAC1-13VG is an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The DAC1-13VG is one-pole SPD and can be used in common mode or common and differential mode. DAC1-13VG AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+Neutral AC networks, sometimes associated with a dedicated N/PE SPD.

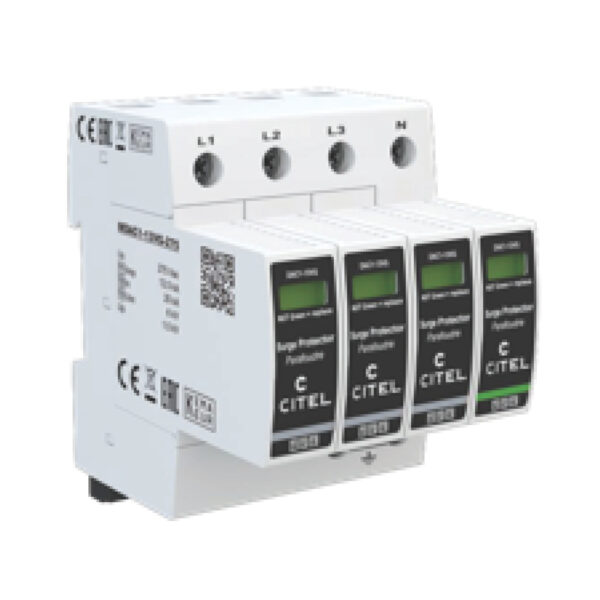

Citel DAC1-13VGS-31-275
Type 1 + 2 + 3 AC surge protector
VG Technology
In : 20 kA
Iimp : 12,5 kA on 10/350µs impulse
No leakage current
Pluggable module for each phase
Remote signaling
Optimized to TOV
EN 61643-11, IEC 61643-11 and UL1449 ed.5 compliance
Certified EN 61643-11 and IEC 61643-11
