Kumwell
Showing 49–62 of 62 results
-
Kumwell – Mould Brush
Application: For cleaning crucible and graphite mould’s surface by its sot brush.
-
Kumwell – Mould Scraper
Application: Used for removing slag from the mould crucible after finishing the connection.
-
Kumwell – One Hole Cable Grip
Material: One Hole Cable Grip (solid copper)
LOCG 25-35: 25-35mm²
LOCG 50-70: 50-70mm²
LOCG 95-120: 95-120mm²
-

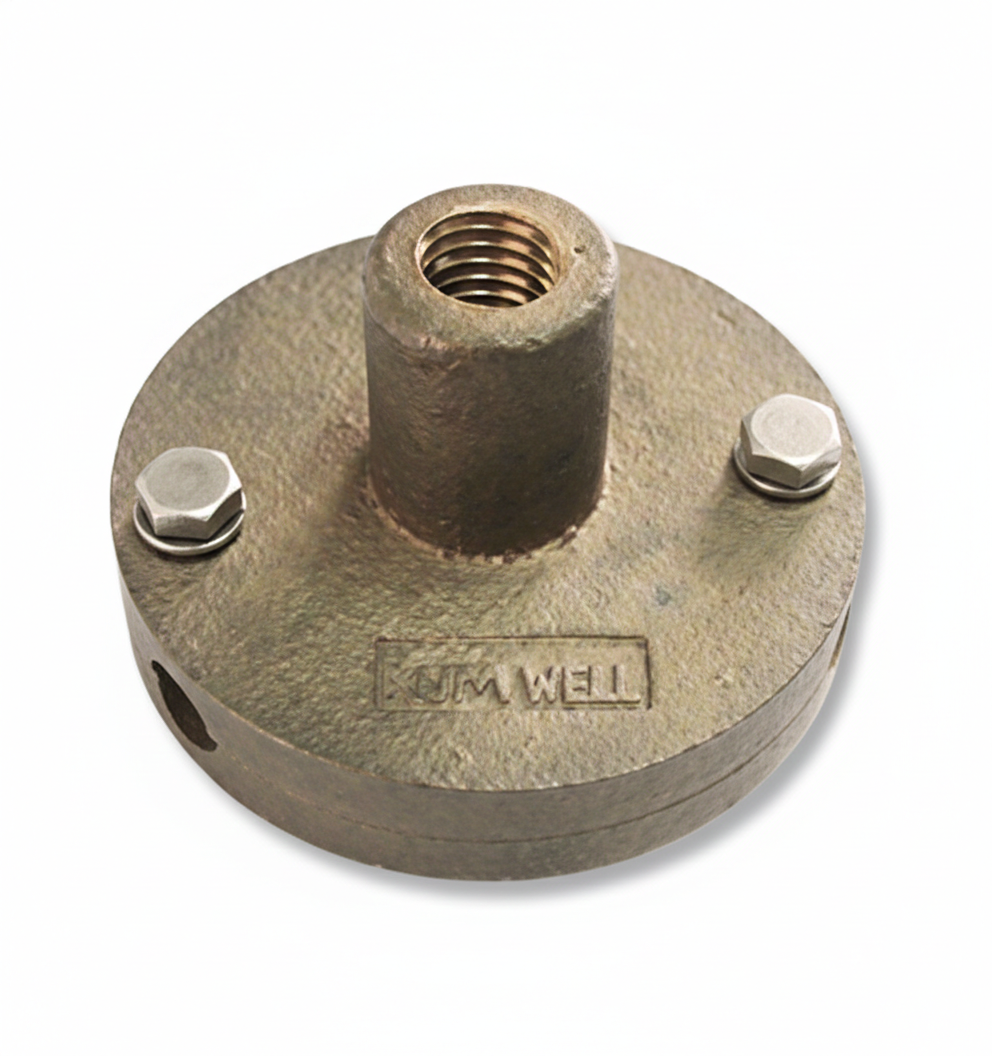

Kumwell – Round Saddle
Material: Round Saddle Air Terminal Base
LROS-58
- Thread size: 5/8″Ø
- Cable size: 50-70mm2
LROS-58-C4/0: 5/8″Ø x 4/0AWG
LROS-34
- Thread size: 3/4″Ø
- Cable size: 50-70mm2
-
Kumwell – Static Earth Receptacle
Material: Copper Alloy, BSEN 1982
Application: Earth receptacle is used for connecting grounding system in the runway, gas station or to discharge static electricity from airplane or oil tank.
Description: Dimension (mm): 114L x 69W x 12.7mm dia.
-

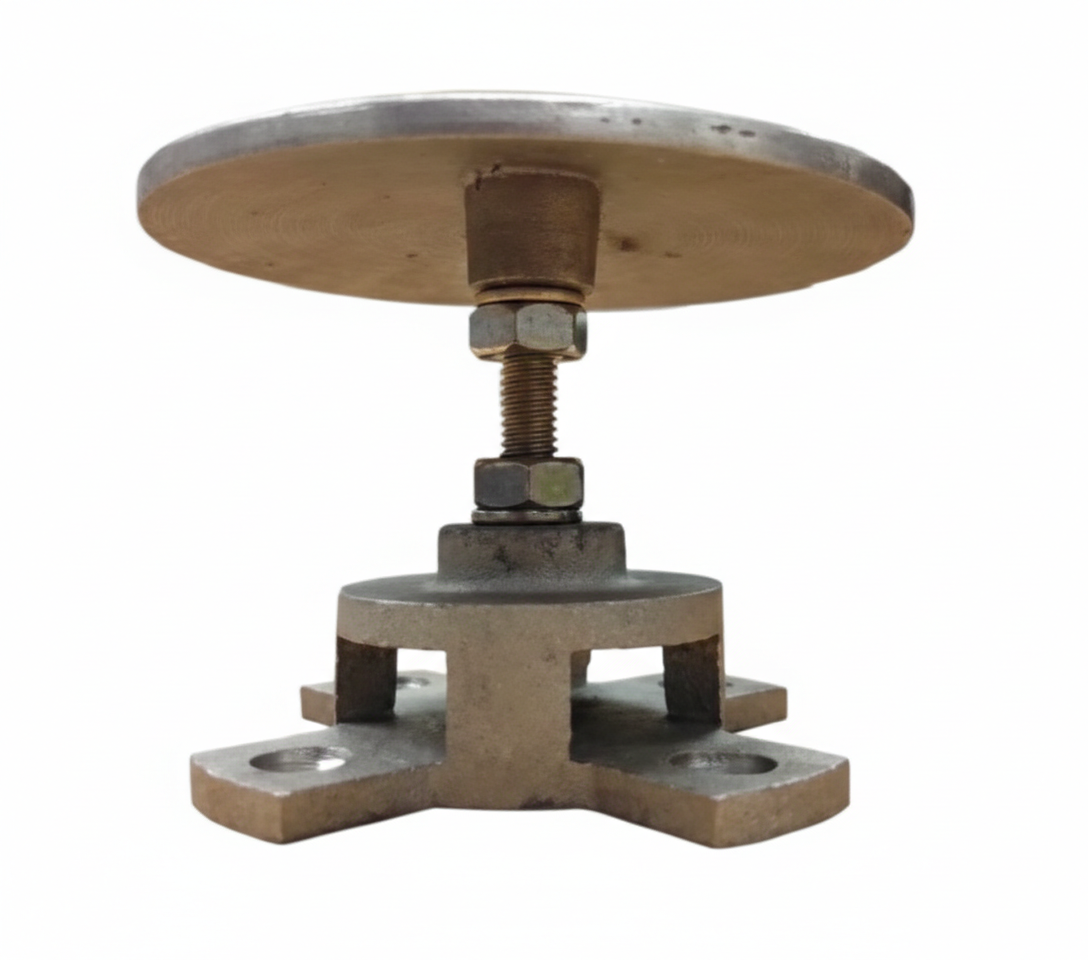

Kumwell – Strike Pad
Catalog no: AS-SPRSA-S383-100
Material: Strike Pad Assembly with round saddle
Description
- Thread size: 3/8″
- Cable size: 60-100mm2
-
Kumwell – Tool Box
Application: Kumwell Toolbox is a special designed steel case suitable storing of exothermic welding equipment before and after process.
-
Kumwell – Weld Metal Powder
Made from high quality material, test and inspection followed international standard UL 467 and IEC
Description
- Non-toxic and heavy metal.
- Steady burn without pop and fire out.
- No slag and porosity.
- Consistency of color.
- High conductivity with at least 93% Cu.
- Sizes: 45gms, 65gms, 90gms, 115gms, 150gms, 200gms, 250gms
-
Square Tape Support – Copper Alloy
Application: Connect copper tape conductors
Material: Copper Alloy – BS EN 1982, Bolt-Brass
Standard: IEC 62561 Part 1
Description: Applicable tape size: 25mm x 3mm (75mm2)
-

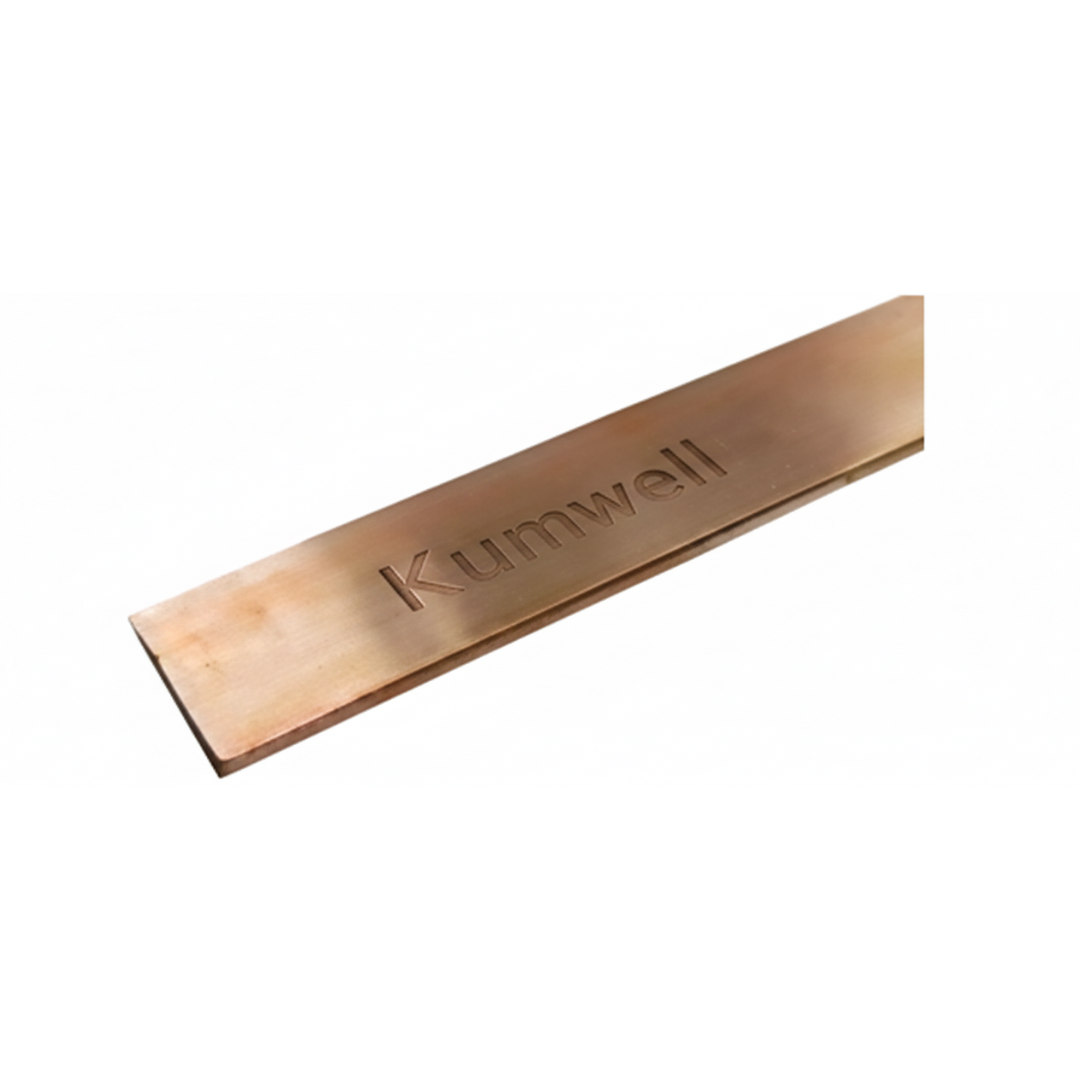

Tape Conductor – Bare Copper
Application: For grounding and lightning protection in typical installation
Material: Copper – BS EN 13601
Standard: IEC 62561 Part 2
Description
- Size: 25mm x 3mm (75mm2)
- Length per coil: 100 meters
-
Tape Conductor – Tinned Copper
Application: For grounding and lightning protection in highly corrosive area
Material: Tin-Plated Copper – BS EN 13601
Standard: IEC 62561 Part 1
Description
- Size: 25mm x 3mm (75mm2)
- Length per coil: 100 meters
-
Tape Saddle – Copper Alloy
Application: Support air terminal to connect with copper tape conductors
Material: Copper Alloy – BS EN 1982, Bolt-Brass
Standard: IEC 62561 Part 1
Description
- Thread Size: 3/4″ dia.
- Applicable Tape Size: 25mm x 3mm to 25mm x 4mm
-
Tape Support – Copper Alloy
Application: To fix copper tape conductors
Material: Copper Alloy – BS EN 1982, Bolt-Brass
Standard: IEC 62561 Part 4
Description: Applicable tape size: 25mm x 3mm (75mm2)
