Kumwell
Showing 33–48 of 62 results
-

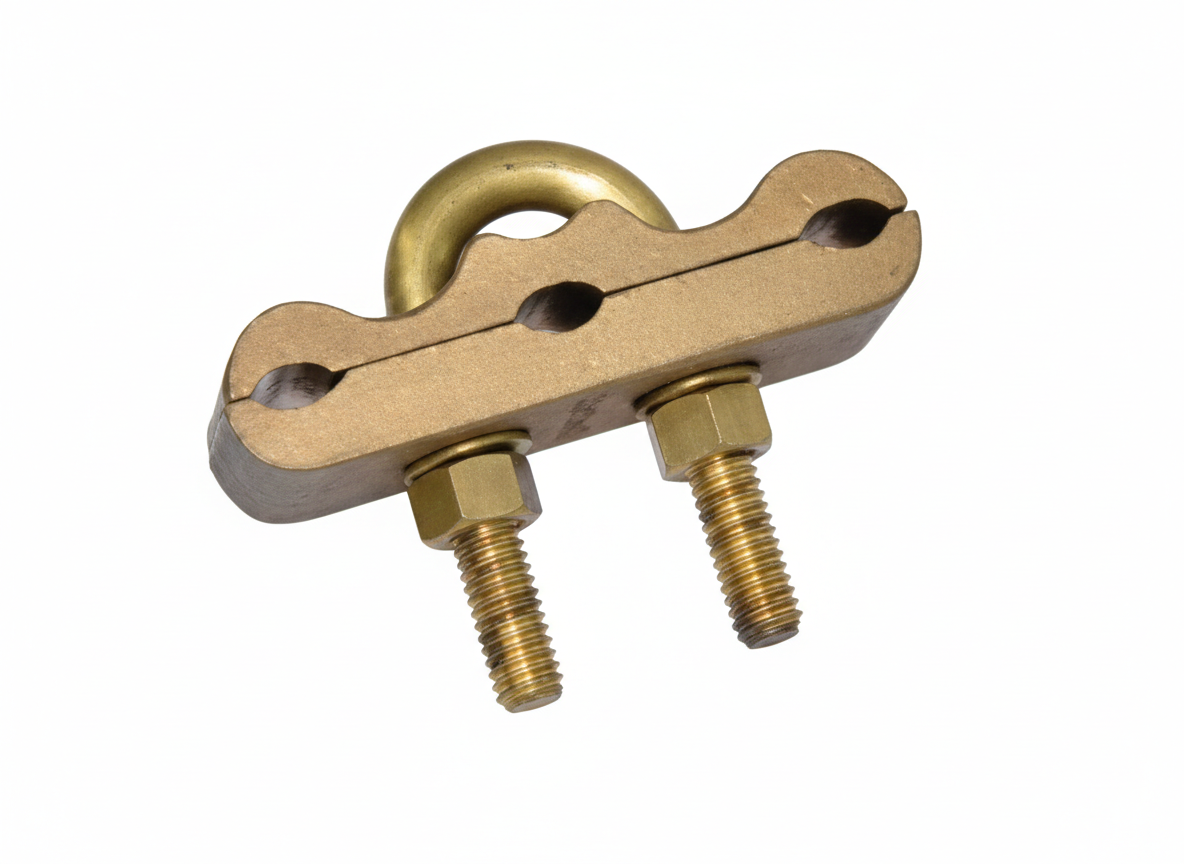

Kumwell – Ground Rod Cable Clamp GXCTH
Material: Copper Alloy BSEN 1982
Application: Rod or pipe to three cable clamp
GXCTH 172-70:
- Rod size: 5/8″ – 3/4″ (15.9mm – 19.1mm)
- Cable size: 25mm2 – 70mm2
GXCTH 172-120:
- Rod size: 5/8″ – 3/4″ (15.9mm – 19.1mm)
- Cable size: 95mm2 – 120mm2
GXCTH 231-120:
- Rod size: 1″ (23.1mm)
- Cable size: 150mm2 – 240mm2
-
Kumwell – Ground Rod Coupling
Material: High Strength Silicone Bronze (threaded)
Description:
- 5/8″Ø X 65mm length
- 3/4″Ø x 70mm length
- 1″Ø x 90mm length
-
Kumwell – Ground Rod Driving Head (High Tensile Steel)
Material: High tensile steel
Description:
- GRBDH 58: 5/8″ for threaded ground rod
- GRBDH 34: 3/4″ for threaded ground rod
- GRBDH 1: 1″ for threaded ground rod
-
Kumwell – Ground Rod Driving Head (Zinc Plated Steel)
Material: Zinc plated steel
Description:
- GRDSR 58: 5/8″ for unthreaded ground rod
- GRDSR 34: 3/4″ for unthreaded ground rod
-

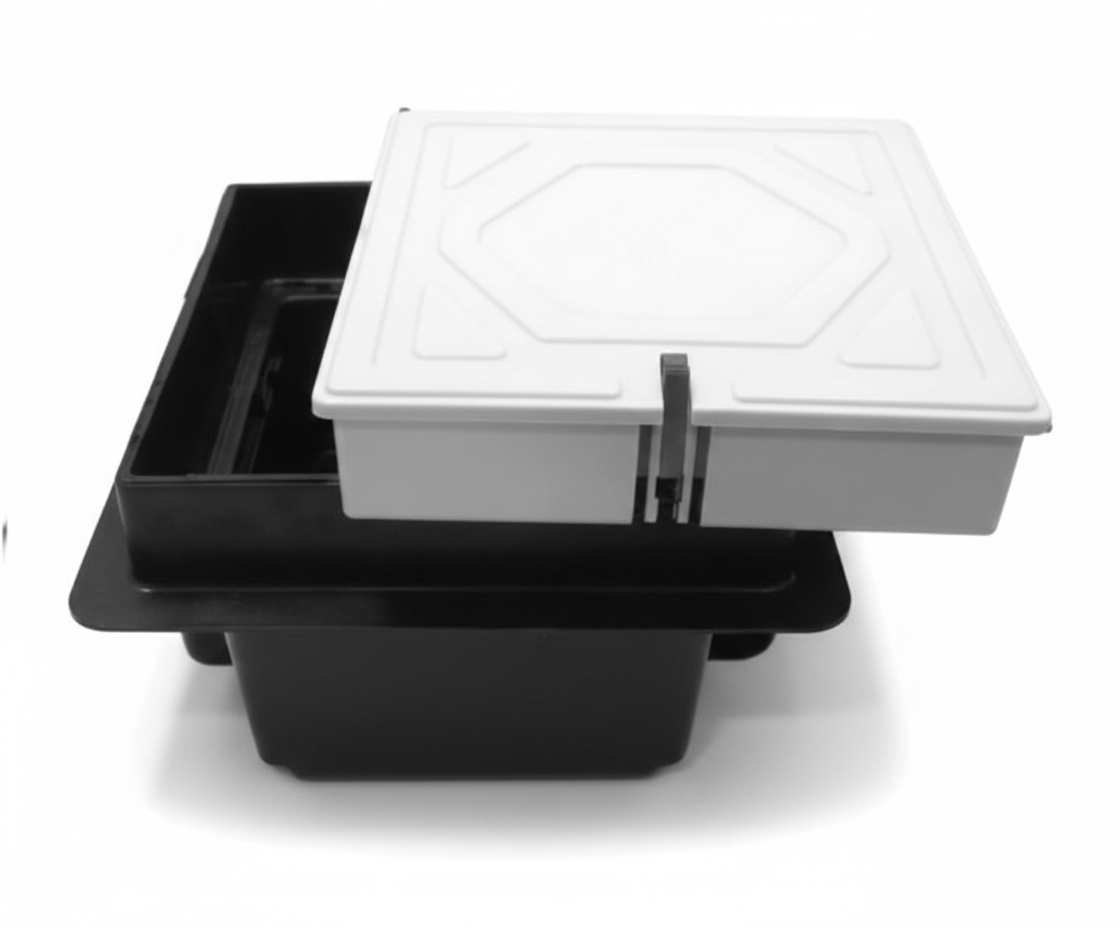

Kumwell – Ground Rod Test Box
GYATB:
Material: Aluminum Test Box w/connection bar
Description: (50-120mm²) 198 X 148 X 98mm
GYPTB:
Material: ABS IP66 Test Box w/connection bar
Description: (50-120mm²) L 200mm X W 150mm X H 100mm
-
Kumwell – Ground Station
Material: Tin Plated Copper BSEN 13601
Application: Ground Station for Power
GBPGSS-6D
Description
- bar12-holes 14.3mmØ stud
- HDG busbar support 350mm x 100mm x 6mm
- Dimension: 350L x 148W x 83H
GBPGSS-8D
Description
- 16 holes 14.3mmØ stud
- HDG busbar support 440mm x 100mm x 6mm
- Dimension: 440L x 148W x 83H
GBPGSS-12D
Description
- 24 holes 14.3mmØ stud
- HDG busbar support 610mm x 100mm x 6mm
- Dimension: 610L x 148W x 83H
-
Kumwell – GXCIP Concrete Inspection Pit
Material: Concrete Inspection
Description:
- Pit 310 X 310 X 192mm,
- compressive strength 6000kg
-
Kumwell – GXFIP
Material: Fiber Reinforced Polyester Inspection Pit
Description:
- 306 X 306 X 215mm
- compressive strength 5000kg
-
Kumwell – Hammer Driving Ground Rod
GHDG-SP12: Ground rod Sliding Hammer Set
- Body: black steel pipe
- Hammer: Steel S45C
-

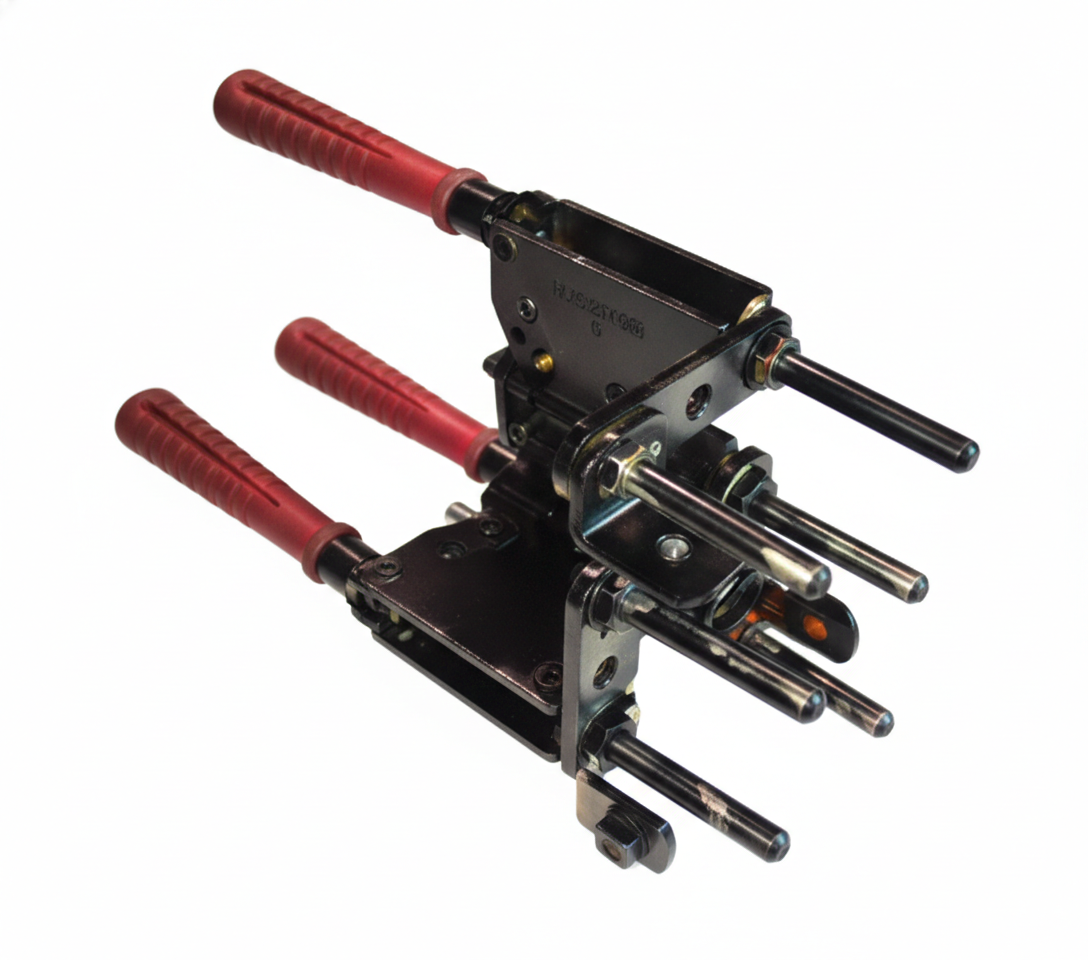

Kumwell – HCC00 and HCD00
Application
Kumwell Handle Clamp is used for handling clamping the mould fit to the right position and tightening without leakage during the exothermic welding process.
HCC00
- Handle Clamp Type C for Mould
- Size: 3-1/8″ x 3-1/8″ and 2-5/16″ distance between prongs
HCD00
- Handle Clamp Type D for Mould
- Size: 4″ x 4″ and 3″ distance between prongs
-
Kumwell – HCC00 or HCD00
Application
Kumwell Handle Clamp is used for handling clamping the mould fit to the right position and tightening without leakage during the exothermic welding process.
HCC00
- Handle Clamp Type C for Mould
- Size: 3-1/8″ x 3-1/8″ and 2-5/16″ distance between prongs
HCD00
- Handle Clamp Type D for Mould
- Size: 4″ x 4″ and 3″ distance between prongs
-
Kumwell – HCC00-TP or HCD00-TP
Application
Kumwell Handle Clamp is used for handling clamping the mould fit to the right position and tightening without leakage during the exothermic welding process.
HCC00-TP
- Handle Clamp Type TP for Mould
- Size: 3-1/8″ x 3 1/8″ and 2-5/16″ distance between prongs
HCD00-TP
- Handle Clamp Type TP for Mould
- Size: 4″ x 4″ and 3″ distance between prongs
-
Kumwell – Isolating Spark Gap
KZ.ISG100: Isolating Spark Gap – High Power Gas
- Discharge Tube for equipotential bonding
- DC-Spark over Voltage: 400-750VDC
- Max. discharge current (8/20 us) Imax: 100kA
- IP66
-
Kumwell – KTA017-KTA018
Application: Butane Torch and Gas are used for removing moisture from mould and conductor to ensure they are totally dry.
KTA017 – Butane Torch
KTA018 – Butane Gas
-
Kumwell – More Effective Grounding
Application:
Kumwell MEG is a ground enhancement material in accordance with requirements of IEEE Standard 80-2013 with a resistivity of 0.03 ohm-meter (Ω.m). It is an alternative solution for effectively reducing ground resistance of the soil surrounding the electrode instead of adding more grid conductors or more ground rods.
Description:
- Recommended to use with Copper/Stainless Steel
- 25 lbs. / 11.5kg / bag
