Kumwell
Showing 17–32 of 62 results
-
Kumwell – Cable Clamp LGRC
Material: Copper Alloy BSEN 1982
Application: Ground Clamp for Cable
- LGRC-A: 95-120mm²
- LGRC-B: 150-185mm2
-
Kumwell – Cable Clean Brush
Application: For cleaning cable only before making connection. Made out of brass, thus do not use for cleaning mould.
-
Kumwell – Cable Cross Clamp
LCAC 35-70: Cable Cross Clamp 35-70mm²
LCAC 95-120: Cable Cross Clamp 95-120MM²
-

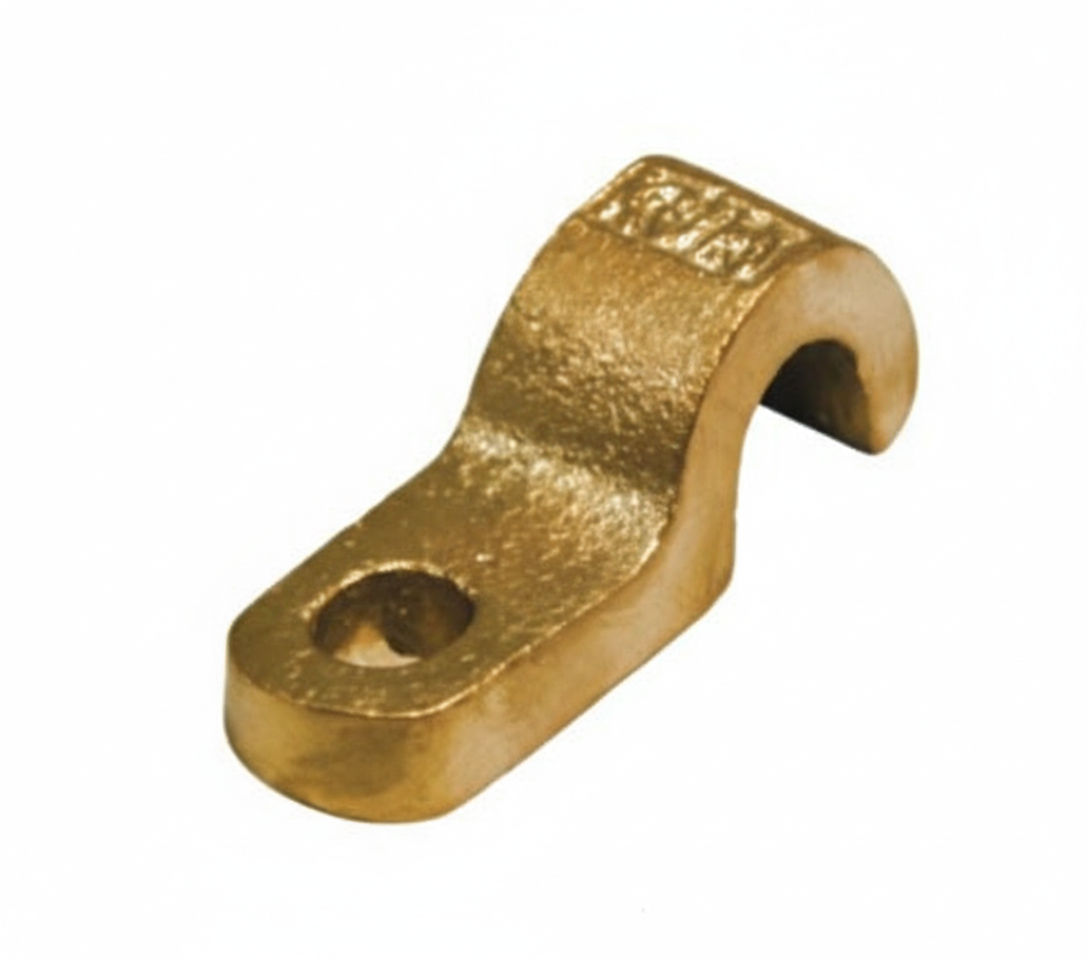

Kumwell – Cable Support
Material: Copper Alloy BSEN 1982
LCAS 50-70: 50-70mm²
LCAS 95-120: 95-120mm²
-
Kumwell – Cable Support
Material: Copper Alloy BSEN 1982
LCAS 50-70: 50-70mm²
LCAS 95-120: 95-120mm²
-

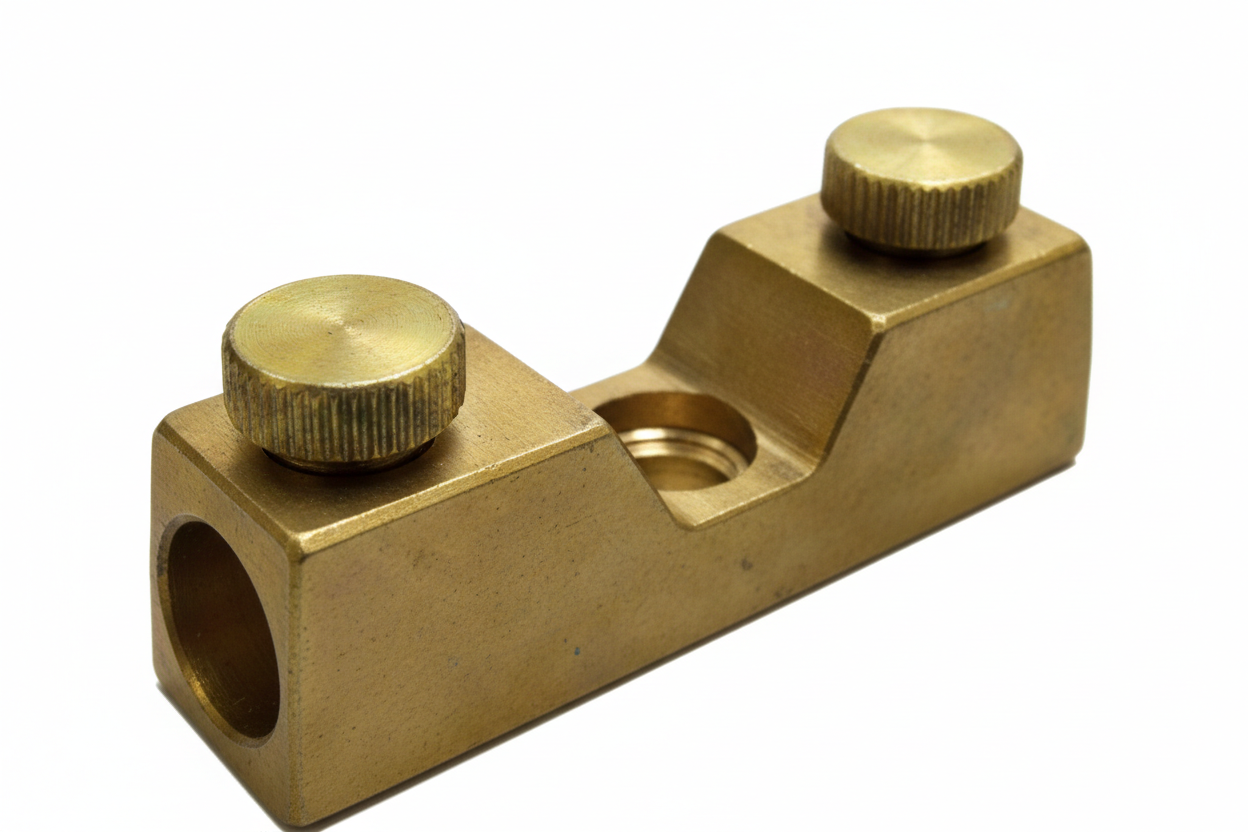

Kumwell – Cable Test Connector
Application: Cable Test Connector
LCATT-35-120: cable size: 35-120mm2
-

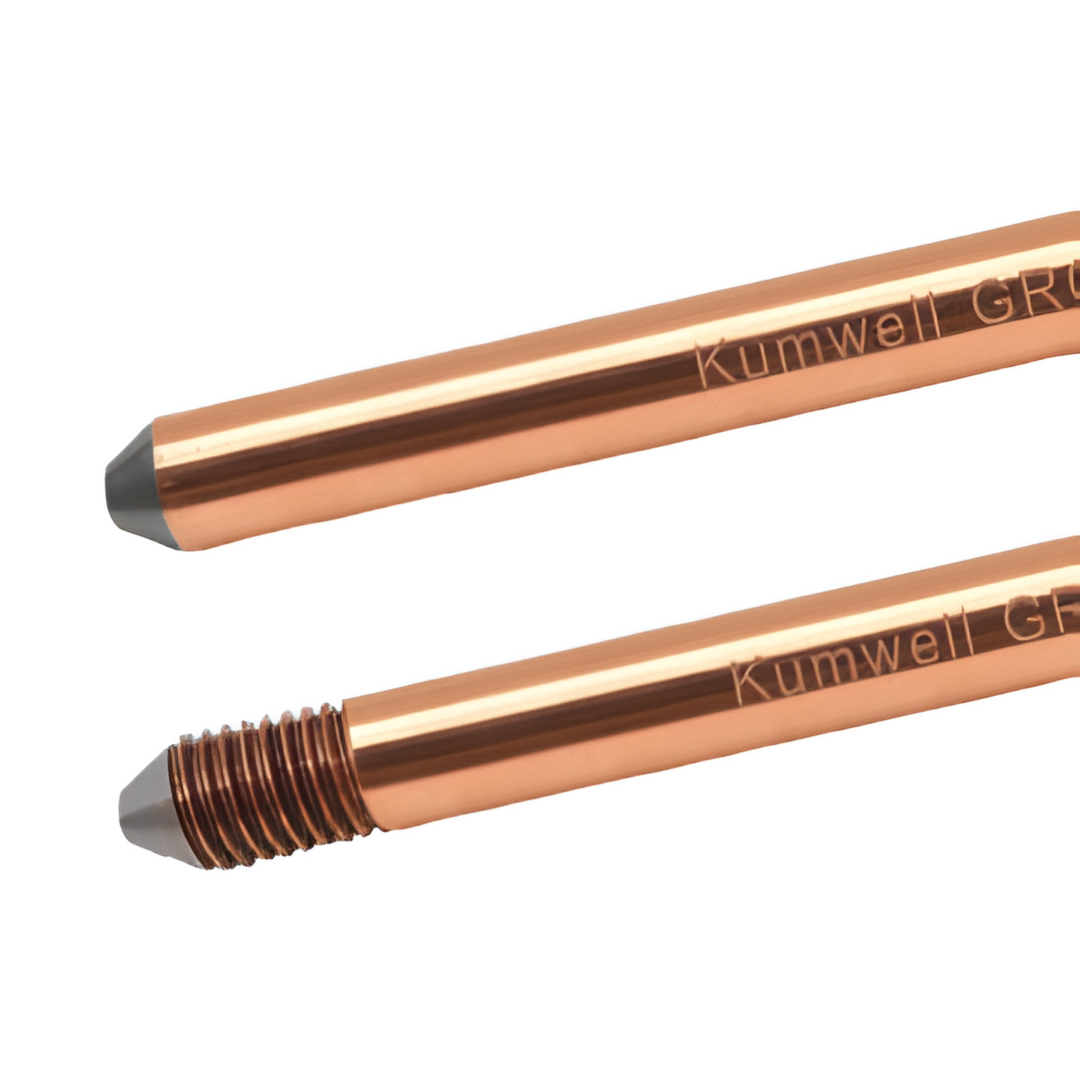

Kumwell – Copper-Bonded Ground Rods
Material: Copper Bonded Ground Rod (Unthreaded), 254 micron
Description:
GRCBU 5810: 5/8″ x 10ft (Ø14.2mm)
GRCBU 3410: 3/4″ x 10ft (Ø17.2mm)
GRCBU 110: 1″ x 10ft (Ø23.1mm)
Material: Copper Bonded Ground Rod (Threaded), 254 micron
Description:
GRCBUT 5810: 5/8″ x 10ft
GRCBUT 3410: 3/4″ x 10ft
GRCBUT 110: 1″ x 10ft
-
Kumwell – Digital Lightning Strike Counter
Application
- LCD screen that shows number of lightning strikes, hour and date of lightning event.
- Button for Time/Date setting and log viewing
- Replaceable battery
- Working life: minimum of 5 years
- Contactless sensors – easy to install, no change in existing installation needed
- Supports copper/aluminum round conductor – 70, 95, 120mm2
- Supports copper/aluminum copper tape conductor – 25mm x 3mm
Description
- Threshold Current (8/20 us): 1kA
- withstand current (10/350 us): 100kA
- of events logged: up to 999
- Temperature range: -20 C to -60 C
- IP65
- Housing: polycarbonate
- Mounting: round or flat conductor
- Standards: IEC/EN 62561-6
-
Kumwell – Disconnecting Link GBDL-253
Material: Tin plated copper bar, zinc plated steel support with insulator
Description
- 2-Terminations
- Size: 125 x 90 x 90mm
-
Kumwell – Double Saddle Air Terminal
Material: Double Saddle Air Terminal Base
LDOS 58
- Thread size: 5/8″Ø
- Cable size: (50-70mm²)
LDOS 58 C4/0
- Thread size: 5/8″Ø
- Cable size: (25-100mm²) 4/0awg
LDOS 34 C4/0
- Thread size: 3/4″Ø
- Cable size: 4/0AWG
- Compatible with 95-120mm2
-
Kumwell – Graphite Mould
Material
It is an exothermic welding mould that is made from high quality graphite
Description
- Earnest design: captivity, flow path.
- High quality raw material
- Accurate tolerance
- Duration: maximum of 50 times in normal usage.

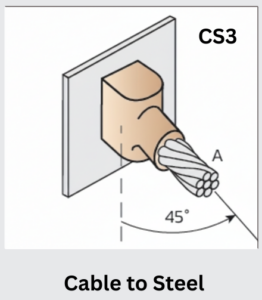

Connection Types
-

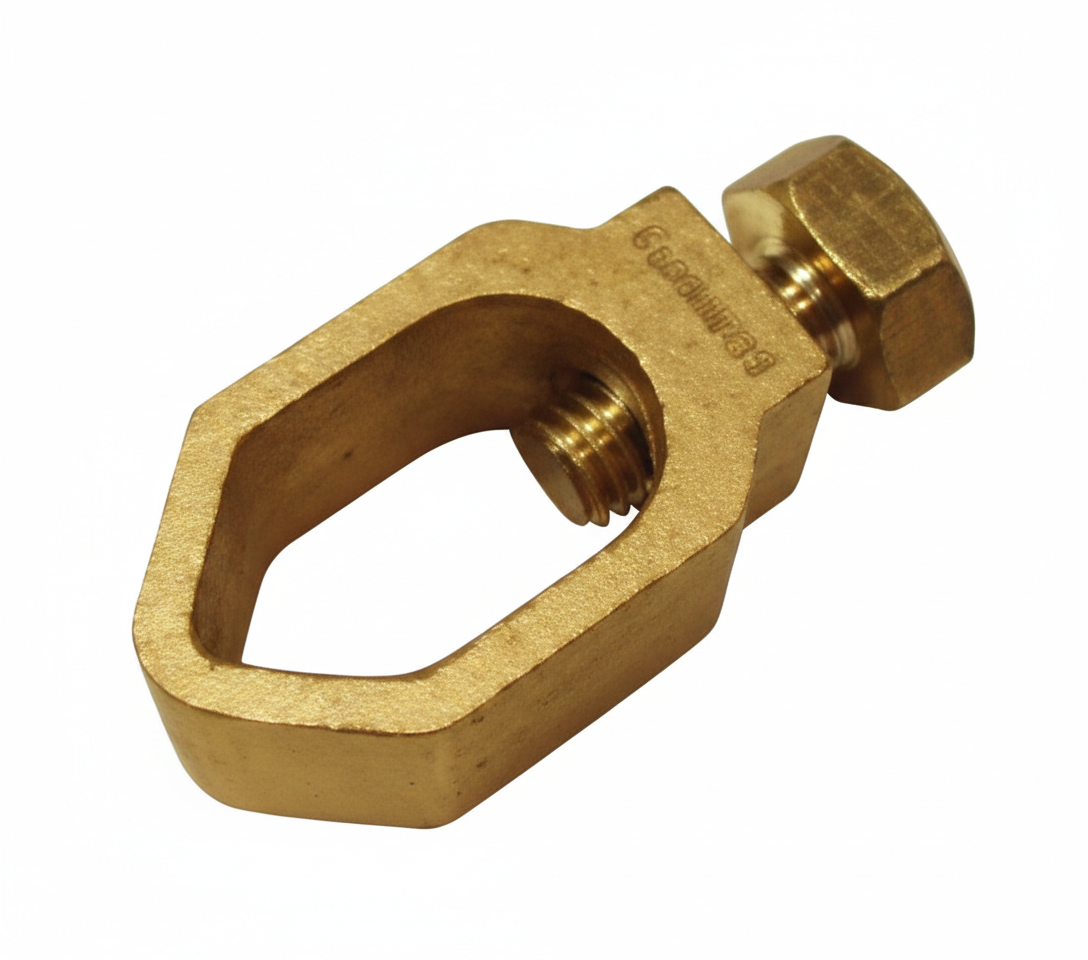

Kumwell – Ground Rod Cable Clamp GXC
Material: Copper Alloy BSEN 1982
Application: Rod to Tape Clamp Connector
GXC 142-70:
- Cable size: 16-70mm²
- Rod size: 5/8″Ø Rod
GXC 172-95:
- Cable size: 35-95mm²
- Rod size: 3/4″Ø Rod
GXC 231-120:
- Cable size: 70-120mm²
- Rod size: 1″Ø Rod
-
Kumwell – Ground Rod Cable Clamp GXCC
Material: Copper Alloy BSEN 1982
Application: Ground Rod parallel to Cable Clamp Connector
- GXCC 127-70: 1/2″ (12.7mm) Ø to 35-70mm² cable
- GXCC 142-95: 5/8″ (14.2mm) Ø to 16-95mm² cable
- GXCC 172-70: 3/4″ (17.2mm) Ø to 16-70mm² cable
- GXCC 172-150: 3/4″ (17.2mm) Ø to 70-150mm² cable
- GXCC 231-150: 1″ (23.1mm) Ø to 70-150mm² cable
-
Kumwell – Ground Rod Cable Clamp GXCT
Material: Copper Alloy BSEN 1982
Application: Rod to Tape Clamp Connector
GXCT 142-302:
- Max tape size: 30mm x 2mm
- Rod size: 5/8″ (14.2mm)
GXCT 172-2610:
- Max tape size: 26mm x 10mm
- Rod size: 3/4″ (17.2mm)
